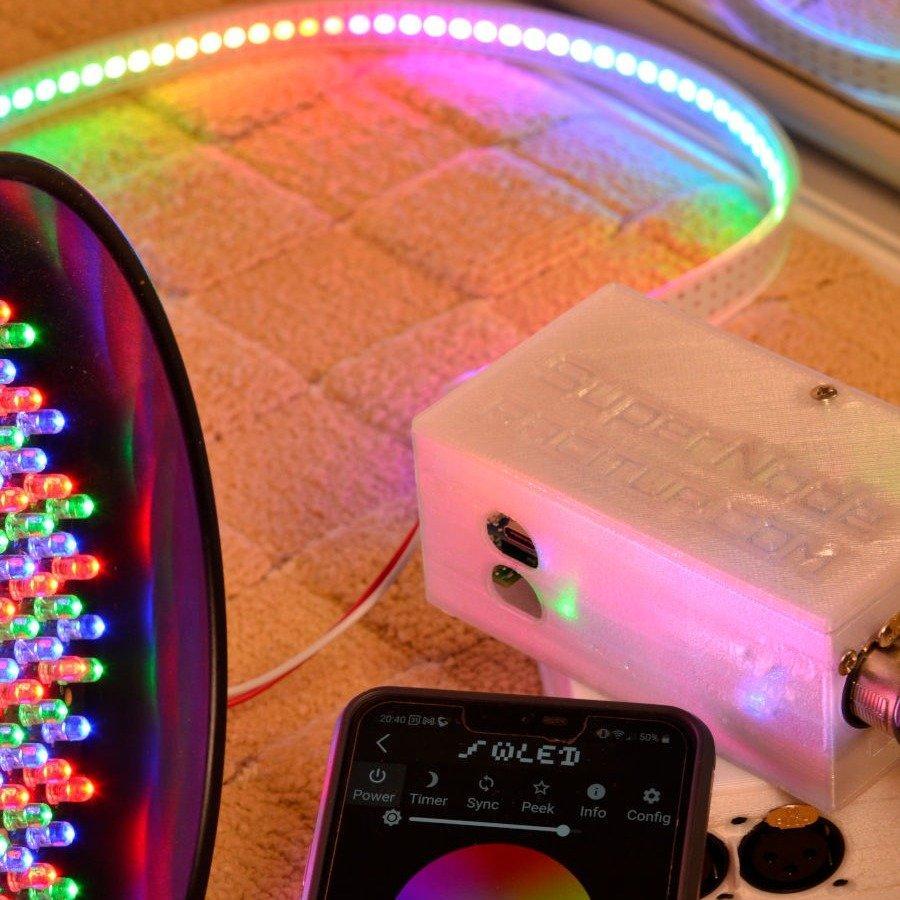

We like to think of our SuperNode as the multi-tool of lighting. It connects to a WiFi network and supports many configuration protocols: the builtin website (also available from Android and iOS), ArtNet, E1.31 sACN, DMX Input, multi-Node sync, Alexa voice assistant, MQTT and Home Assistant and Philips Hue.

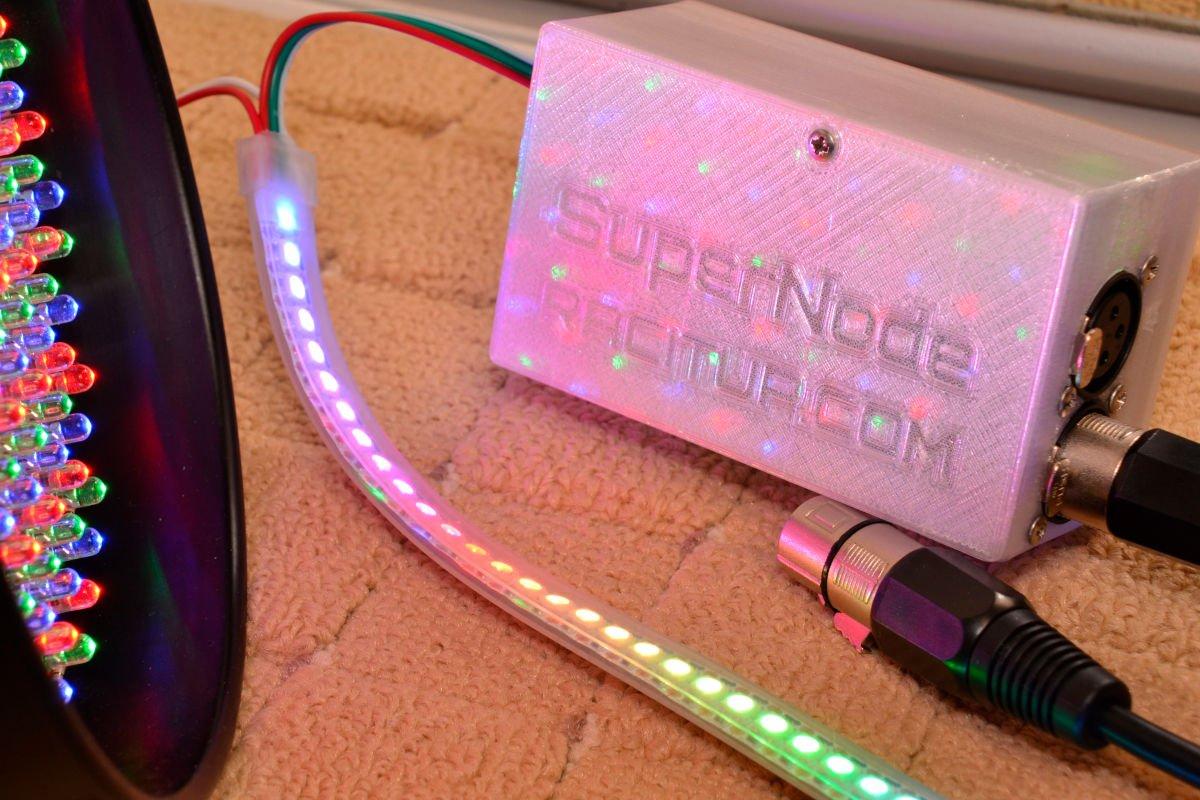

Three LED strip ports (2x 3-wire and 1x 4-wire) can drive more than 1000 LEDs in total, on individually addressable LED strips, such as SK6812, WS2812 and APA102. Two standard 3-pin fully isolated XLR DMX512 ports can drive any standard lighting fixtures which can be handled just like LEDs by the builtin WLED software. Our SuperNode can be configured with a mix of LEDs and DMX fixtures.

The DMX support is completely re-written from the standard WLED software and uses a fully hardware accelerated driver for ultimate reliability and performance.

ArtNet, sACN and DMX In can be used to drive the connected lighting in one of the following modes: single colour, drive each LED/fixture separately, choose from more than 100 effects, configured presets or a passthrough mode.

Passthrough can operate in two ways: from physical DMX In to ArtNet, or from ArtNet/sACN to DMX outputs. The latter mode operates dynamically, so that as soon as data stops arriving, the ports fall back to the configured WLED effect.

Also supports 2D LED matrices with builtin effects. As seen on ebay.
